Price
US $45000-75000
Model
L-CNG4300 Gabion Machine
Min. Order
1 set

Item specifics

After-sales Service Provided
Engineers available to service machinery overseas
Out put
160 - 225M/H
Color
blue green or Customerized
weight
15T
wire diameter
2.0-4.0mm

Product review

Description

  Product Description



Detailed Product Description: The series gabion machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, gabion coated wire is available.

We can manufacture Gabion Machine according to customer's request.

 gabion mesh machine


1.Mesh Size’s range from 50*70 mm To 176*200 mm;

2.We can design the machine to produce the mesh size according to customer’s request .But the mesh size should in the range of 50*70 mm To 176*200 mm;

3.Range of galvanized wire:2.0mm4.0mm(for different mesh size pls find the parameter in the specification);

4.Range of PVC coating galvanized wire: 5.0mm;

5.Our motor adopt Frequency Motor


Main Technical Parameter


Mesh Size

(mm)

Max. Breadth

(mm)

Max.Dia of Weaving wire(mm)

Max.Dia of Bordering Wire(mm)

Max Weaving-

vein No.

Power

(kw)

Theoretical Manu-

facturing speed

Exterior Size(m)

Weight

(T)

Mesh Hole Count/Minute

Meter/

Hour

L×W×H



60×80

2300

2.7

4.0

3/5

11

42

165

5.2*1.4*2.4

13

3300

2.7

4.0

3/5

15

42

165

6.2*1.4*2.4

14

4300

2.7

4.0

3/5

30

42

165

7.2*1.4*2.4

15



80×100



2300

4.0

4.0

3/5

11

42

225

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

225

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

225

7.2*1.4*2.4

15



100×150

2300

4.0

4.0

3/5

11

42

225

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

225

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

225

7.2*1.4*2.4

15



160×180

2300

4.0

4.0

3/5

11

42

250

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

250

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

250

7.2*1.4*2.4

15



176×200

2300

4.0

4.0

3/5

11

42

250

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

250

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

250

7.2*1.4*2.4

15


Product Show

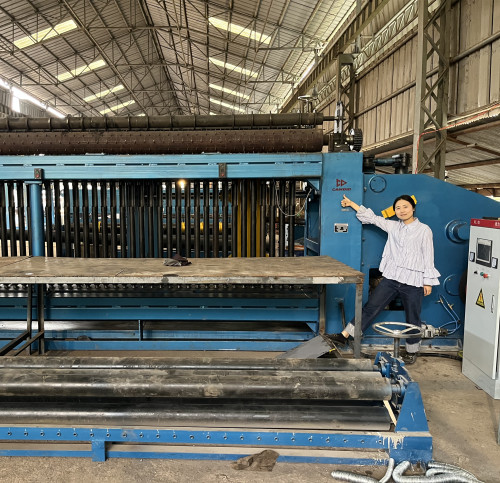

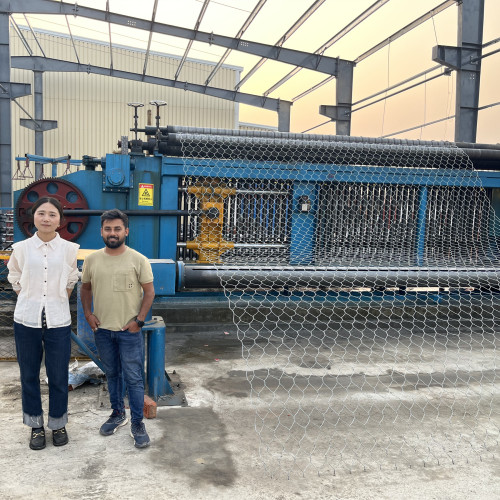

Main Machine


gabion machine


gabion machine


Auxiliary

Wire Spiral Coiling Machine

wire spiral coiling machine


coil wire for gabion machine


 Netting Roll Winding Machine

gabion machine


Wire Tension Machine

gabion machine


Wire Pay-off

wire pay off for gabion machine


Electric control box

electric control box


Applications
